The whole machine, taken apart

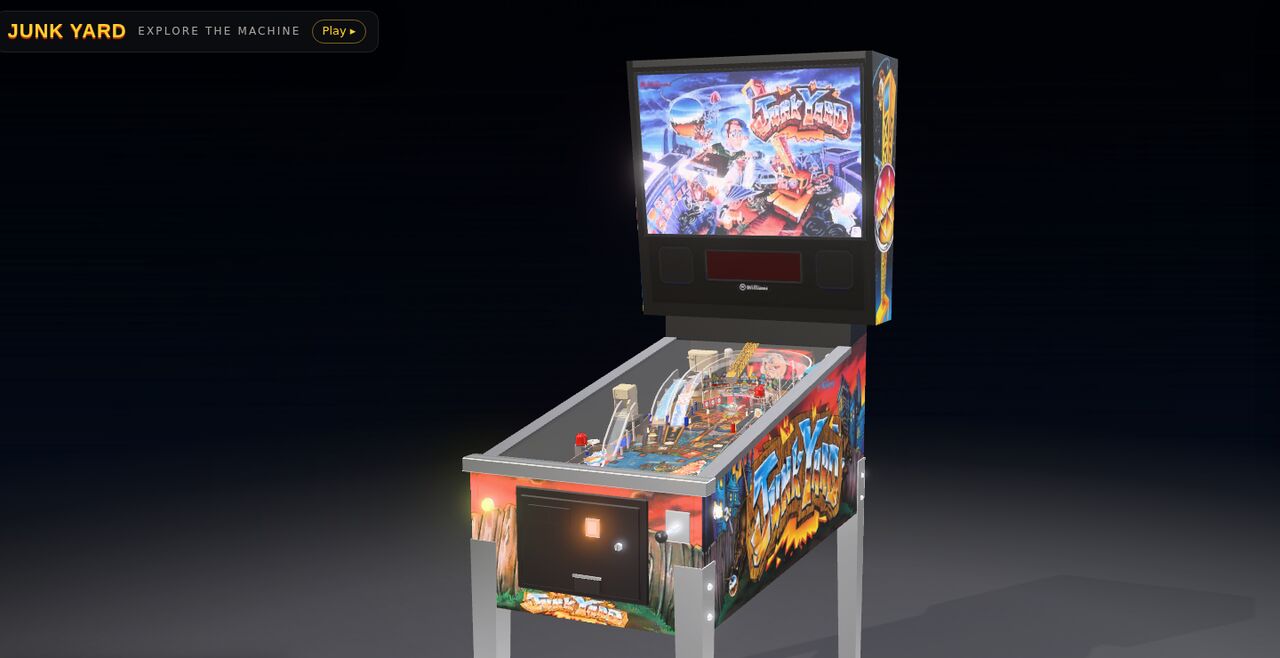

Walk around Junk Yard in 3-D: the cabinet, the backbox, every toy on the playfield and the mechanisms underneath. Take it apart layer by layer, see through it, and make it work. No ball, no timer, no tilt.
Works on desktop and phones. On a phone the tools sit in a strip along the bottom: swipe it for Tour, X-ray and Deep zoom.

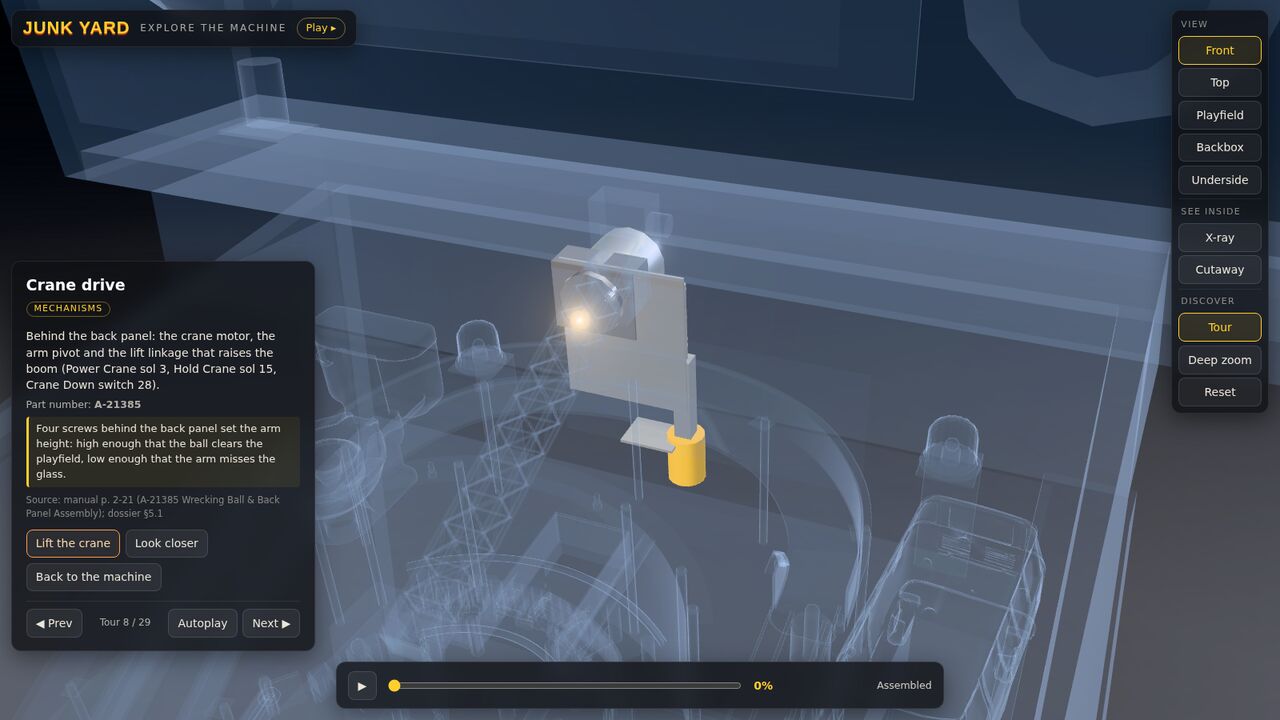

The tour
29 stops through the machine
The guided tour flies from the cabinet to the backbox, across every toy and down to the coils under the playfield. At each stop the rest of the machine turns to glass and a card says what the part is, what it does in the game, its Williams part number, and where that comes from: the service manual page, the patent or our research.
Step through it, or press Autoplay and watch: each stop shows its mechanism working.
Start the tour

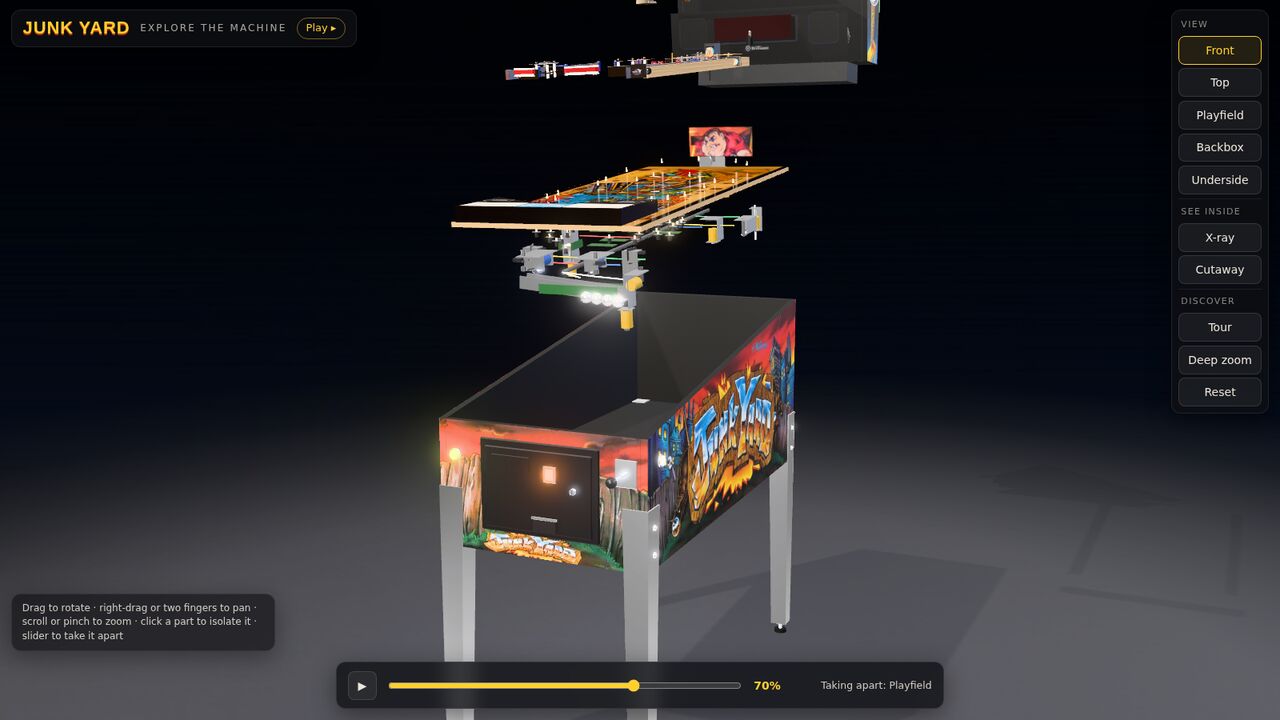

Explode
Take it apart, layer by layer
Drag the slider and the machine comes apart in the order you'd take it apart: the glass, the backbox, the ramps and plastics, the toys, the posts and targets, then the whole playfield lifts off the cabinet and the mechanisms spread out underneath. The label tells you which layer is moving. Press play to watch it come apart and go back together.
Open it at 70%

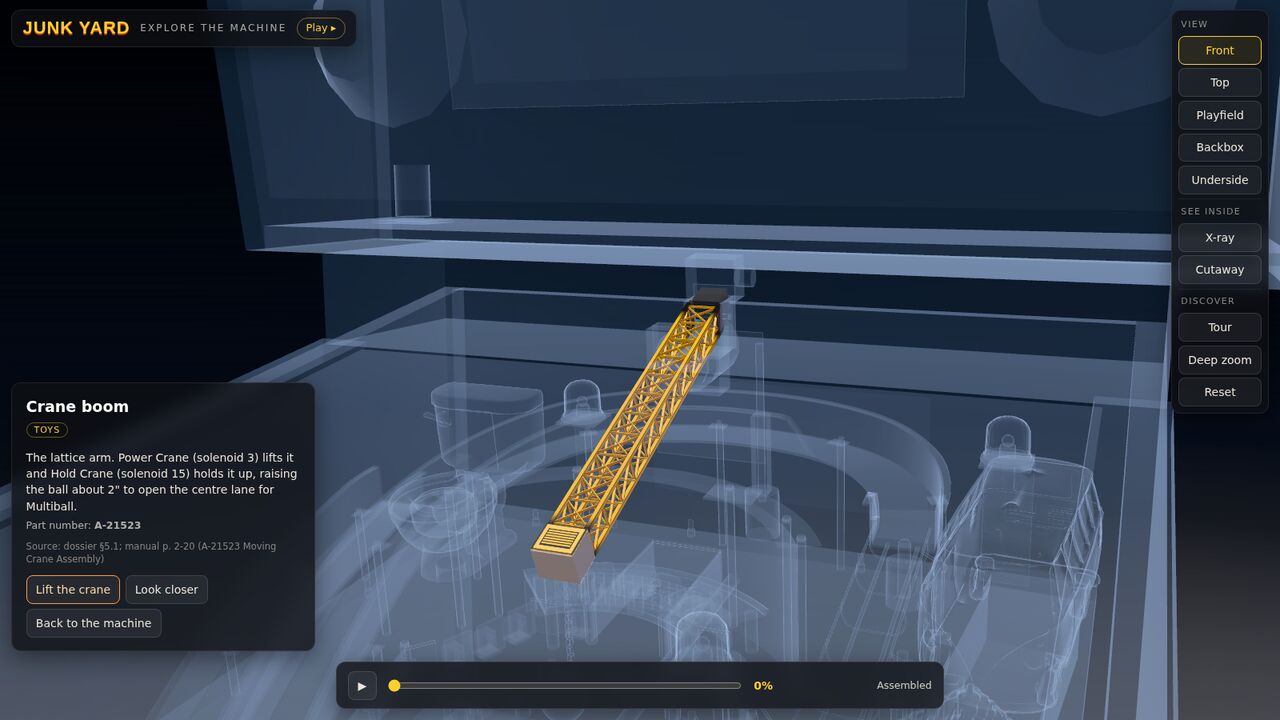

Isolate
Click any part
Every part is its own piece, more than 130 of them, each with a sourced card. Click (or tap) one and the rest of the machine turns to glass. Look closer flies the camera to it; Back to the machine (or Esc) puts everything back.
Working mechanisms
Cards for moving parts have a button, and the explorer runs the game's own coils and physics: the crane lifts, the fridge popper fires a ball, Spike lunges out of his house, the fork and the bus post move, the flippers and slings kick, the trough ejects and the autoplunger launches.
Open the craneSee inside

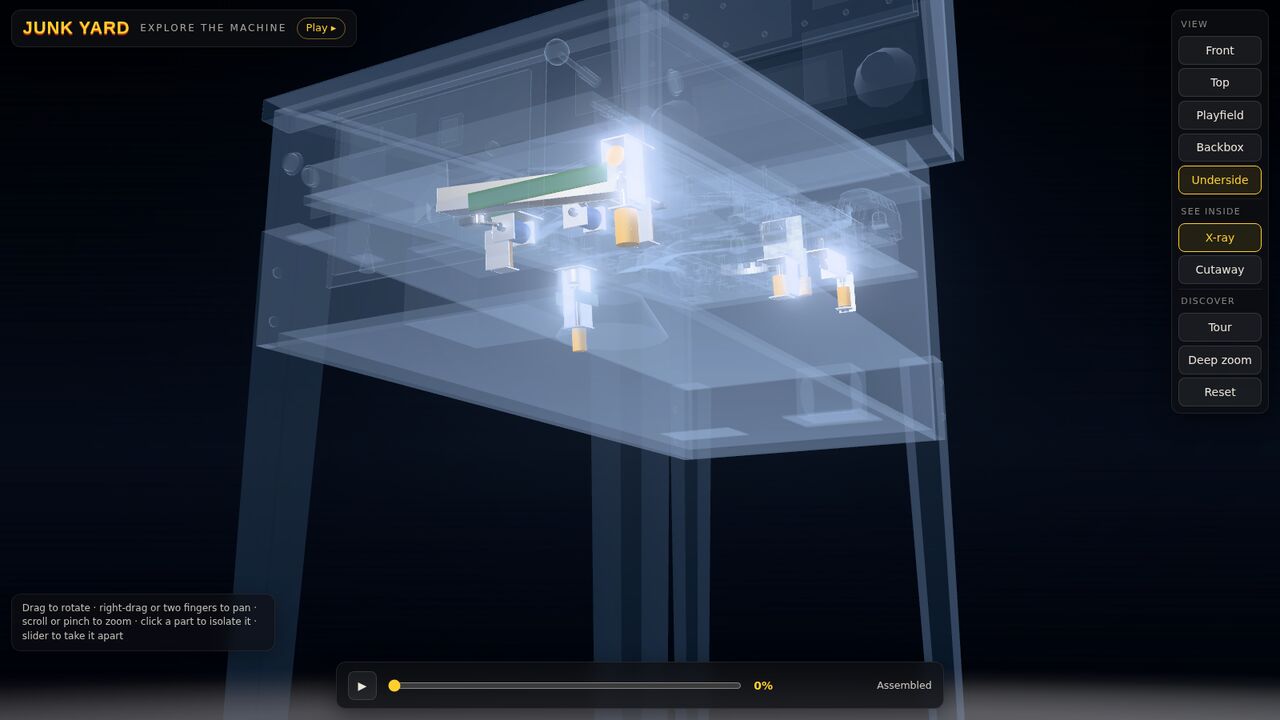

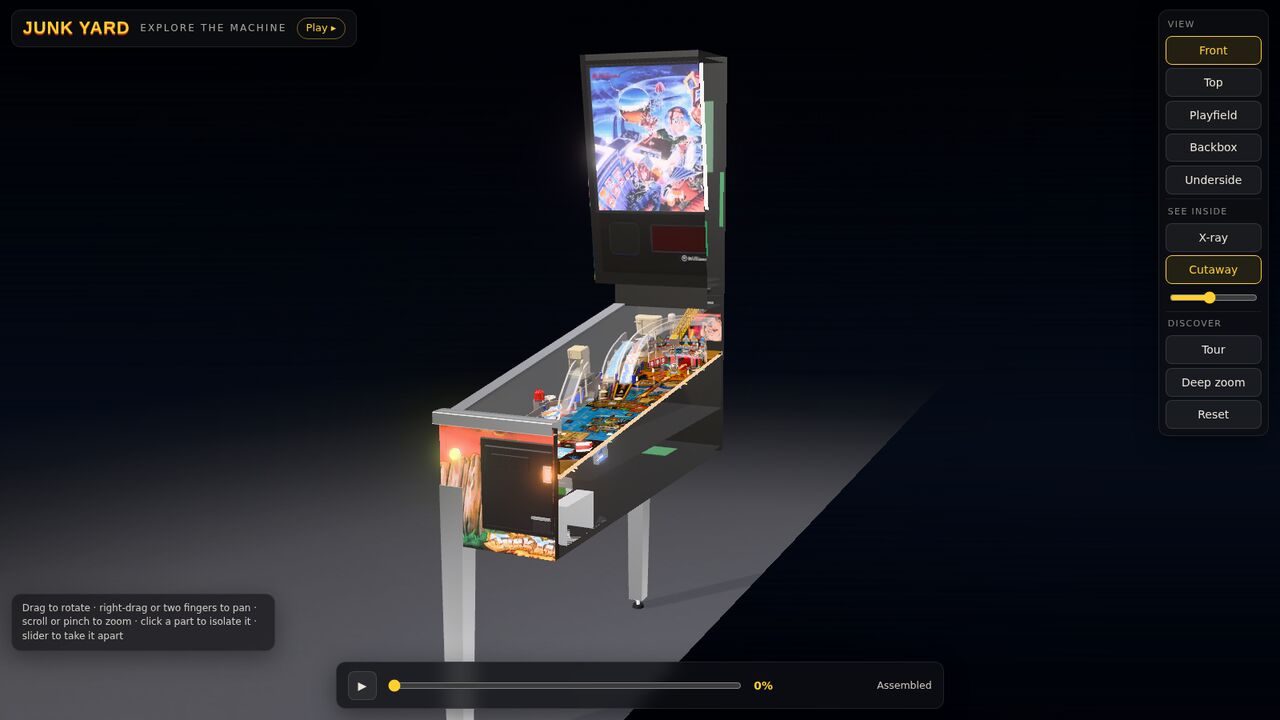

X-ray and cutaway

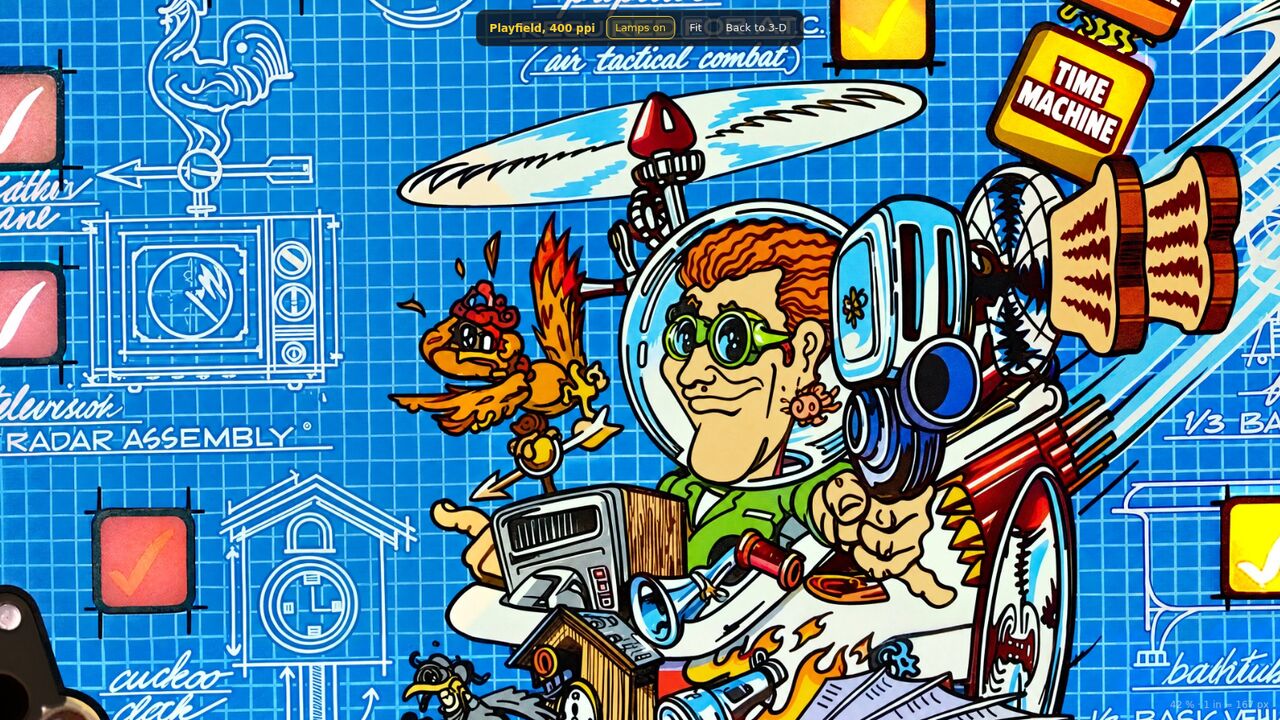

Deep zoom
The playfield at 400 pixels per inch
The remastered playfield in full: 8,100 × 18,600 pixels, loaded tile by tile as you zoom. Scroll or pinch to zoom, drag to move, double-click to zoom in. Lamps on lights every insert, as if the machine were running.
Open the deep zoomGetting around
Controls
- Rotate: drag. Pan: right-drag or two fingers. Zoom: scroll or pinch.
- Views: Front, Top, Playfield, Backbox and Underside (keys 1 to 5).
- Keyboard: arrow keys pan, Shift + arrows rotate, + / − zoom, Esc goes back.
- Share what you see: the address follows you, so a link opens the same part, tour stop, explode or zoom.
Built from the manual
Every part has a source

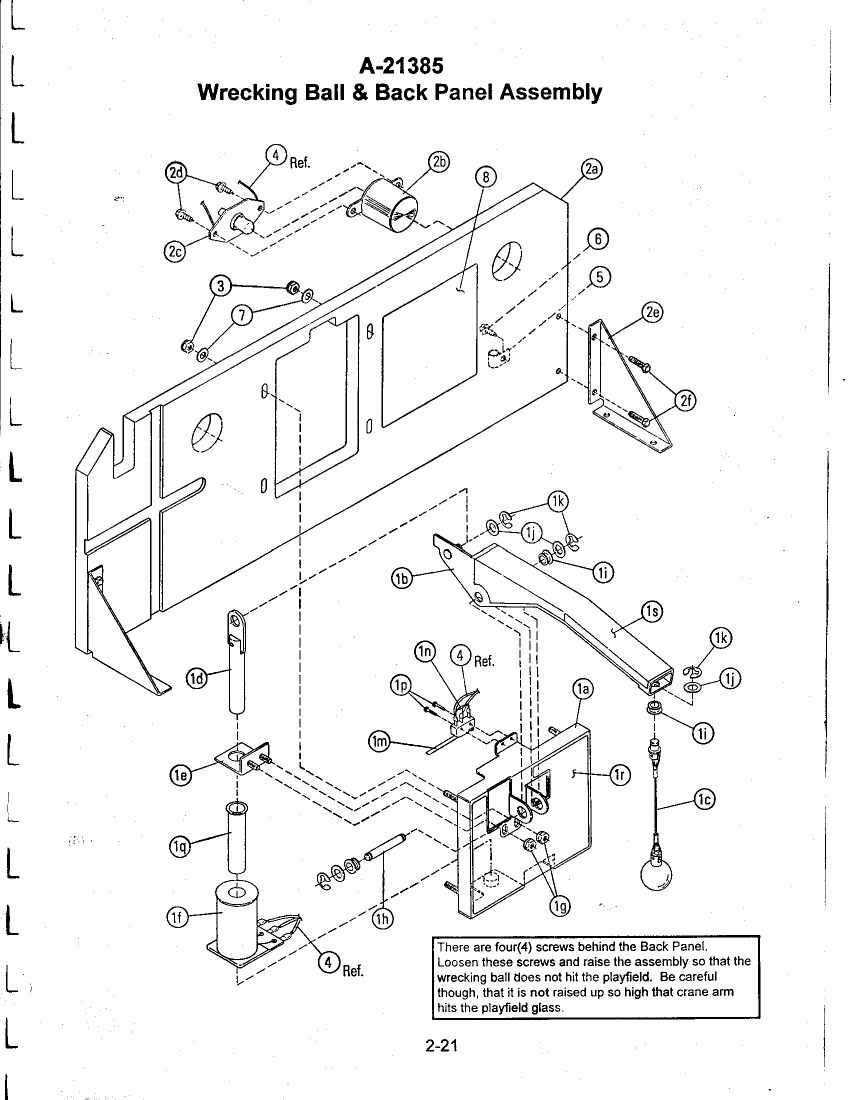

The mechanisms under the playfield were modelled from the exploded drawings in Williams' service manual: the flipper assemblies, the slingshots, the ball trough, the crane drive behind the back panel, the three-ball popper under the fridge, the dog mechanism, the fork lifter and the bus post, each with the part number printed on its coil. The cabinet and backbox have their boards inside, labelled the same way.
